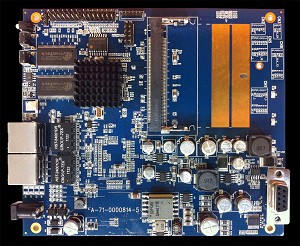

JA76PF2

Professional Duo Slot Atheros Network Platform
Part No.:JA76PF2

JA76PF2



High Speed Processing

The Atheros AR7161 680MHz processor, provides top speed processing to support 2 WIFI mini PCI modules.


Robust, Reliable

The JA76PF2 uses, top of the line, industrial grade components and has been put through rigorous reliability testing to provide a robust and reliable solution.


Design Flexibility

The JA76PF2 Wi-Fi Network platform is designed to accept various mini PCI modules.


Features

  • Atheros AR7161 680MHz Network Processor
  • Atheros AR8316 gigabit switch
  • 64Mbytes SDRAM Memory
  • 16Mbytes SPI Flash Memory
  • Two Type-III Mini-PCI Slot
  • Two Gigabit Ethernet Port (1WAN/ 1LAN)
  • On board 802.3AT POE
  • Passive POE compliant
  • Input Voltage Range: 37V to 56V DC/ AC, Type 48V
  • Power Consumption: 16W Max
  • One RS-232 Serial Port
  • One E-JTAG Debug Interface
  • General Purpose Digital I/O
  • Temperature Monitor
  • Thermally Activated Fan Controller
  • Watchdog Timer
  • Front Panel LED and Reset Switch
  • -10° ~ +70 °C Operating Temperature
  • -20° ~ +70 °C storage Temperature
  • Humidity 5% ~ 98% non-condensing
  • JJPlus LSDK


  • JA76PF2 Datasheet: Download
