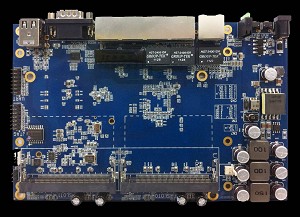

JWAP011

Professional Duo Slot Atheros Network Platform
Part No.:JWAP011

JWAP011



High Speed Processing

The Atheros AR7161 680MHz processor, provides top speed processing to support 2 WIFI mini PCI modules.


Robust, Reliable

The JWAP011 is developed with high grade industrial components and has been put through rigorous reliability testing. The JWAP011 can sustain the most extreme environments.


Design Flexibility

The JWAP011 Wi-Fi Network platform is designed to accept various mini PCI modules.


Features

  • Atheros AR7161 680MHz Network Processor
  • Atheros AR8316 gigabit switch
  • 128Mbytes SDRAM Memory
  • 16Mbytes SPI Flash Memory
  • Two Type-III Mini-PCI Slot
  • Five Gigabit Ethernet Port (1WAN/ 4LAN)
  • Two Type-A USB 2.0 Host Ports
  • One E-JTAG Debug Interface
  • General Purpose Digital I/O
  • Thermally Activated Fan Controller
  • Watchdog Timer
  • Front Panel LED and Reset Switch
  • DC Jack Input : Range 12V to 18V DC Voltage
  • 802.3at Power Over Ethernet, Input Voltage Range: 36V to 56V DC/ AC
  • Power Consumption : 24W Max
  • -10° ~ +70 °C Operating Temperature
  • -20° ~ +70 °C Storage Temperature
  • Humidity 5% ~ 98% non-condensing
  • JJPlus LSDK


  • JWAP011 Datasheet: Download
