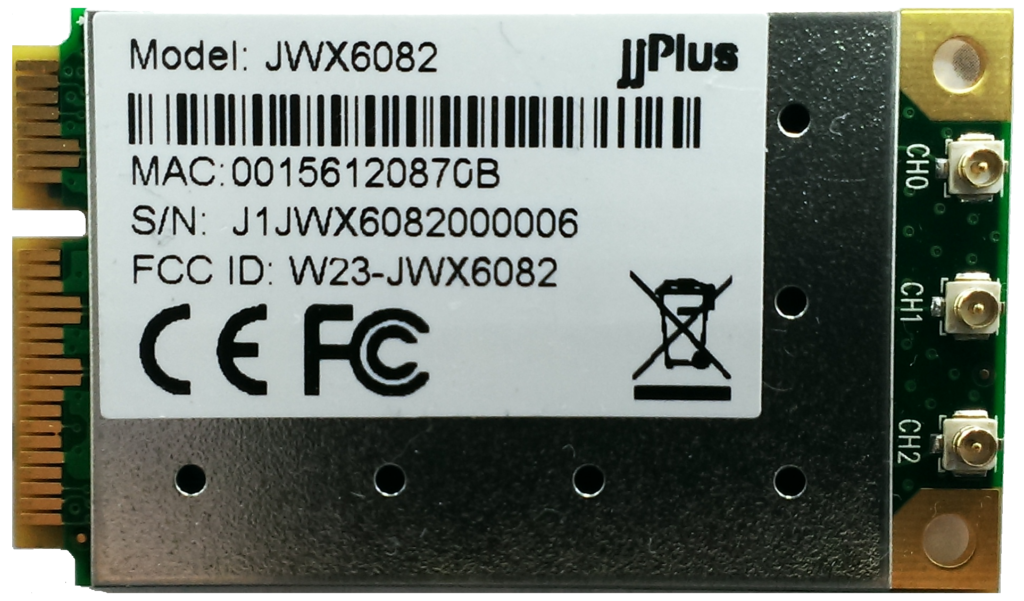

JWX6082

Industrial Grade 802.11 a/b/g/n 3T3R Mini PCI Express Module

Specifications

Chipset

Atheros AR9390-AL1B

Data Rate

11b : up to 11Mbps
11a/g : up to 54Mbps
11n : up to 450Mbps

Host Interface

Mini PCIe

Radio Operation

IEEE 802.11a/n

IEEE 802.11g/n

Output Power
Tx +/- 2dB (1Tx)

15dBm @ 6~12Mbps
12dBm @ 54Mbps
15/15dBm @ MCS0 (HT20/HT40)
10/10dBm @ MCS7 (HT20/HT40)

19dBm @ 1~11Mbps
19dBm @ 6~12Mbps
16dBm @ 54Mbps
18/18dBm @ MCS0 (HT20/HT40)
14/13dBm @ MCS7 (HT20/HT40)

Receiver Sensitivity
Rx +/- 2dB

-94dBm @ 6~12Mbps
-78dBm @ 54Mbps
-93/-92dBm @ MCS0 (HT20/HT40)
-73/-70dBm @ MCS7 (HT20/HT40)

-95dBm @ 1~11Mbps
-95dBm @ 6~12Mbps
-79dBm @ 54Mbps
-94/-92dBm @ MCS0 (HT20/HT40)
-73/-71dBm @ MCS7 (HT20/HT40)

Antenna Interface

U.FL x3 for 3T3R

Dimension

50.95(L) mm X 30(W) mm X 3.8(H) mm

Operating Voltage

3.3V+/- 0.1V

Operating Temperature

-40°C to +85°C

Datasheet

Download
