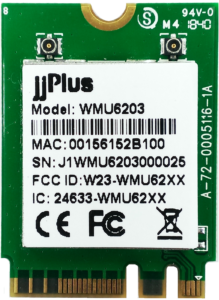

WMU6203

802.11abgn/ac 2T2R WIFI & BT Module

Specifications

Connector M.2 Key A+E (2230)
Interface USB 2.0
802.11 Standard IEEE 802.11 a/b/g/n/ac + BT4.2
MIMO 2T2R
Antenna 2 x MHF4
Main Chip Vendor Realtek
Main Chip Part No. RTL8822BU
Frequency 2.412-2.484GHz

5.150-5.850GHz

Operating Voltage DC 3.3V
Maximum Output RF Power (Per chain) 2.4GHz @15dBm

5GHz @14dBm

Power Consumption(Max) 2W(Max)
Channel support 20/40/80MHz
Operating Temperature -20℃ to 70℃
