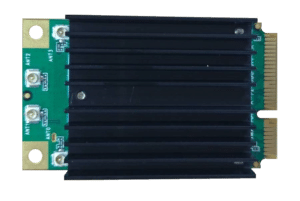

WMX5401
802.11ac Wave2 4T4R WIFI Mini-PCIE Module
Products
Specifications
Connector | Mini PCIe |
Interface | PCIe 2.0 |
802.11 Standard | 11ac Wave 2 |
MIMO | 4T4R |
Antenna | 4 x U.FL |
Main Chip Vendor | Qualcomm Atheros |
Main Chip Part No. | QCA9984 |
Frequency | 5.150-5.850GHz |
Operating Voltage | DC 3.3V ± 10% |
Maximum Output RF Power (Per chain) | 5GHz @21dBm |
Power Consumption(Max) | 8W(Max) |
Channel support | 20/40/80/160MHz |
Operating Temperature | -20℃ to 85℃ |
Datasheet |
