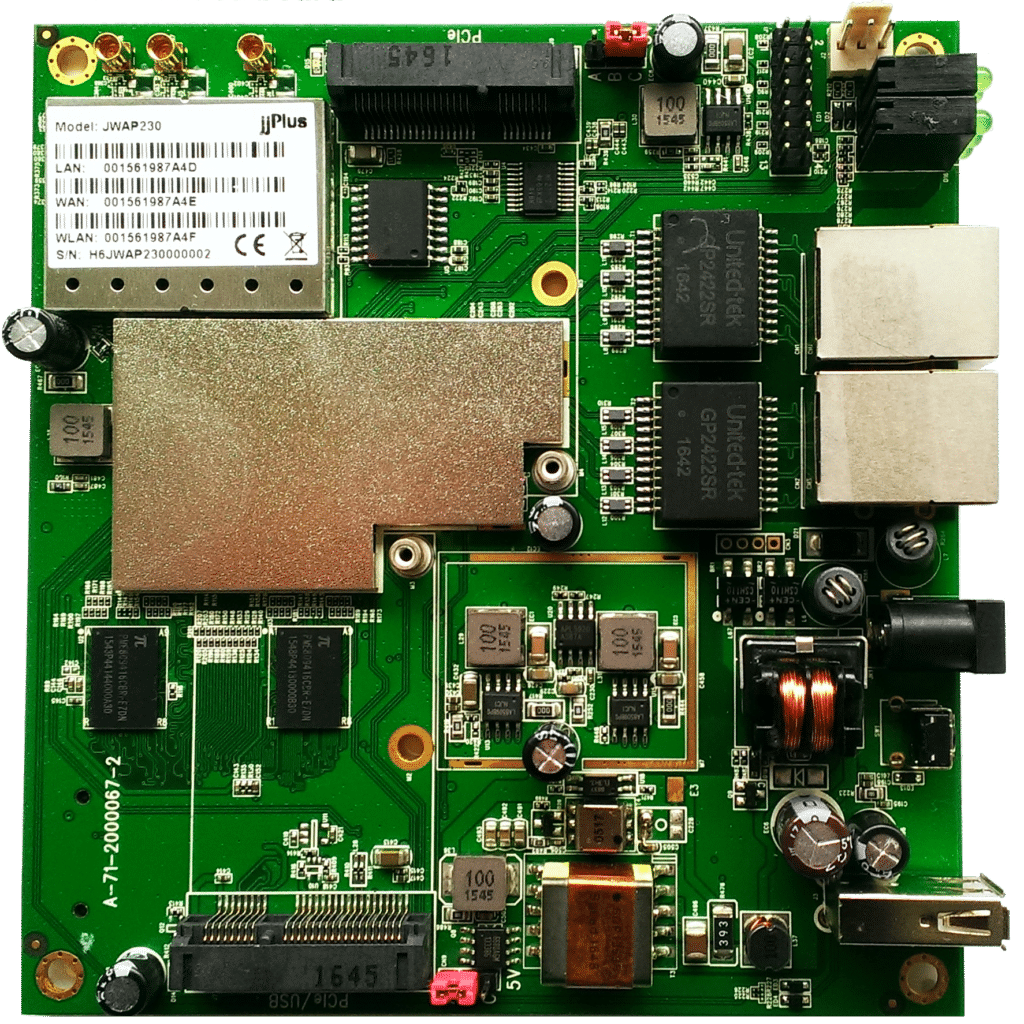

JWAP230

802.11n 3×3 2.4GHz wireless embedded board with 2 MiniPCI-e slots to support 802.11ac Wave 2

• Powerful QCA9558 WiSoC, 700MHz
• On-board 3×3 450Mbps 802.11n
• Three radio solution (on-board 802.11b/g/n radio and 2 MiniPCI-e slots that support all jjPlus 802.11ac radio)
• 802.3at or 48V Passive PoE
• Support 2x Gigabit Ethernet port (1x WAN, 1x LAN)

Specifications

  • Qualcomm Atheros QCA9558

  • Qualcomm Atheros AR8337

  • 128Mbytes SDRAM Memory

  • 16Mbytes SPI Flash Memory

  • WAN : Gigabit Ethernet Port x 1

  • LAN : Gigabit Ethernet Port x 1

  • USB type-A x 1

  • MMCX x 3

  • Normal SIM Slot x 1

  • Mini-PCIe Slot x 2 (Mini-PCIe Protocol x 1, USB default protocol x 1), both supports 3.3V (default) or 5V power input, adjustable by jumper

  • Reset Button x 1

  • LEDs x 6 (Power, WAN,LAN, Reserved LED x 3)

  • Console : UART x 1, 3-pin Header

  • DC : 36V ~ 57V

  • PoE : 802.3at (default) or 48V Passive PoE

  • PSE : 802.3af (Optional)

  • Power Consumption : 25W Max

  • Surge Protection : WAN port, 6KV (common mode), 1.5KV (differential mode)

  • ESD Protection : 4KV (Contact Discharge), 8KV (Air Discharge)

  • Operating Humidity : 10% to 90% non-condensing

  • Storage Humidity : 5% to 90% non-condensing

  • Operating Temperature : -20ºC to +70ºC

  • Storage Temperature : -40ºC to +80ºC

  • Dimension : 125 x 117 (mm)

Standards

IEEE 802.11 b/g, 802.11n

Data Rate

11b: 1/2/5.5/11Mbps
11g: 6/9/12/24/36/48/54Mbps
11n (20MHz): MCS0-23, up to 216.6Mbps
11n (40MHz): MCS0-23, up to 450Mbps

Modulation

OFDM,16QAM,64QAM

Frequency Range

2.412 ~ 2.472GHz

Radio Operation

IEEE 802.11b/g/n

Output Power
Tx (RMS) +/- 2dB

23dBm @ 6~24Mbps
21dBm @ 36Mbps
20dBm @ 48Mbps
19dBm @ 54Mbps
28/27dBm @ MCS0 (HT20/HT40)
27/27dBm @ MCS1 (HT20/HT40)
27/27dBm @ MCS2 (HT20/HT40)
27/27dBm @ MCS3 (HT20/HT40)
26/26dBm @ MCS4 (HT20/HT40)
26/26dBm @ MCS5 (HT20/HT40)
25/25dBm @ MCS6 (HT20/HT40)
23/23dBm @ MCS7 (HT20/HT40)

Receiver Sensitivity
Rx +/- 2dB

-92dBm @ 6~12Mbps
-91dBm @ 18Mbps
-88dBm @ 24Mbps
-85dBm @ 36Mbps
-82dBm @ 48Mbps
-80dBm @ 54Mbps
-92dBm @ MCS0 (HT20)
-77dBm @ MCS7 (HT20)
-89dBm @ MCS0 (HT40)
-74dBm @ MCS7 (HT40)
