Wireless Power Receivers
Product | Type | Output Power | Output Power Connector | Required Input Power | Dimension |
---|---|---|---|---|---|
WCRDG01 | Charging Dongle | 5W Max at 5V/1.0A to load | Lightning | jjPlus 10W or above Power Transmitters | 67 x 61 x 7mm |

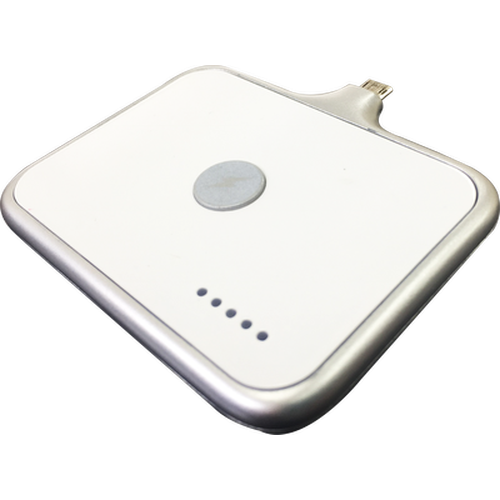

WCRDG02 | Charging Dongle | 5W Max at 5V/1.0A to load | Micro-USB | jjPlus 10W or above Power Transmitters | 67 x 61 x 7mm |
WCRDG04 | Charging Dongle | 5W Max at 5V/1.0A to load | Lightning, Micro-USB, Type C | jjPlus 10W or above Power Transmitters | 67 x 61 x 7mm |
CDR010A | Charging Dongle | 10W Max at 5V/2.0A to load | Lightning, Micro-USB, Type C | jjPlus 10W or above Power Transmitters | 67 x 61 x 7mm |
CBR010A | Power Bridge (working as a Qi Charging Stand or as an USB-Type A Power Port) | Qi Transmitter Mode: 7.5W Max delivery to Qi receiver USB Type-A mode: 10W Max at 5V/2.0A to load | Qi Transmitter Mode: wireless USB Type-A Mode: USB-Type A | jjPlus 10W or above Power Transmitters | 136 x 72 x 12mm (upper), 123 x 72 x 13 (base) |
CGR030A | Power Plug (supporting a USB Type-C Power Delivery port and an USB Type-A Port) | 1 x USB Type-C output: PD3.0 PPS 30W 1 x USB Type-A output: 5W Max at 5V,1.0A | 1 x USB Type-C 1 x USB Type-A | jjPlus 35W or above Power Transmitters | 119 x 94 x 25mm |
